Maximizing the storage capacity of a residential garage requires moving tools, equipment, and supply bins off the floor and onto structural vertical surfaces. A cluttered workshop layout restricts vehicle parking spaces, creates significant physical safety hazards, and dramatically limits productivity during routine household tasks. This comprehensive guide outlines ten highly functional, durable, and space-saving methods for fabricating customized shelving networks directly on your wall studs. Readers will learn how to analyze lumber weight ratings, execute precise level alignments, incorporate heavy-duty steel brackets, and mount sturdy ledger boards safely. Whether your current goal is to organize heavy automotive mechanical tools, store seasonal lawn care supplies, or build lightweight overhead sorting racks, these structured strategies offer professional-grade alternatives to expensive premade plastic systems. Understanding the core principles of structural load distribution, spatial orientation, and reliable fastening patterns guarantees that your completed installation remains physically secure and completely stable under changing heavy loads. By focusing on reliable production workflows, straightforward construction parameters, and original storage layouts, this tutorial provides the exact technical guidance needed to execute a highly successful home improvement project.
The massive surge in consumer demand for heavy-duty storage configurations highlights a significant modern shift toward intentional home home decor, optimized workspace utility, and structured residential organization. Across digital design platforms and online inspiration boards, homeowners actively search for high-utility Pinterest ideas that transform underutilized spaces into pristine zones, making garage shelf upgrades one of the most trending ideas in modern architectural optimization. This specific project category carries immense practical value because it allows you to utilize standard raw lumber sheets to build targeted vertical platforms tailored to your exact bins. The strong DIY appeal stems from the widespread availability of heavy-duty steel anchors, structural pine dimensional lumber, and basic hand tools that streamline domestic production for woodworkers of all experience levels. Beginner friendly building methods ensure that individuals with minimal prior framing or carpentry background can still achieve a professional, flat, and perfectly aligned finish on their very first attempt. By focusing on clean geometric configurations, sturdy wood builds, and high weight capacities, these handmade storage networks improve room workflow on a very modest budget.
Thorough structural planning and systematic raw material preparation are critical baseline requirements for achieving a long-lasting, heavy-duty finish on any wall shelf system. Before starting any physical fabrication or mounting steps, you must measure your open garage walls precisely, documenting the exact layout width, ceiling clearance heights, and location of internal vertical wall studs. The primary materials required across these storage methods include two-by-four-inch structural pine boards, three-quarter-inch exterior grade plywood sheets, heavy-duty steel lag screws, zinc-plated wood screws, and specialized structural corner ties. Essential tools for your domestic assembly station generally include a portable cordless drill with driver bits, an electronic stud finder, a circular saw or hand saw, a long spirit level, a heavy-duty tape measure, and personal protective safety glasses. Planning considerations must prioritize direct attachment to internal wooden wall framing above all else, ensuring that no heavy shelf relies solely on weak drywall anchors or sheetrock skins. Gathering all necessary materials and clearing a wide, flat work surface on your floor beforehand eliminates cutting alignment errors, resulting in a flawless surface presentation.
Idea 1: Heavy Duty Dimensional Pine Floating Framework
Step-by-Step Guide
The heavy duty dimensional pine floating framework relies on building an internal interlocking wooden box grid that anchors directly into your wall studs, providing an exceptionally strong, clean shelf platform without requiring visible lower diagonal supports. This specific design concept utilizes two-by-four-inch structural pine framing lumber to construct a rigid rectangular chassis, which is then skinned with smooth, thick exterior-grade plywood sheets. The visual presentation is highly modern, uniform, and architectural, establishing a clean minimalist style layout along the upper borders of your garage walls while leaving the lower floor area completely clear for large rolling toolboxes or vehicle parking. Because the support structures are fully integrated within the wooden framework, it eliminates protruding metal brackets that can catch on clothing or accidentally scratch vehicle doors during parking maneuvers.
To execute this clean floating installation, begin by using an electronic stud finder to locate all the vertical wall studs behind your garage drywall, marking the center of each stud clearly with a pencil at your desired mounting height. Cut a long two-by-four-inch pine board to your preferred total shelf length to serve as the main rear ledger plate, and hold it against the wall while checking for perfect horizontal alignment with a long spirit level. Secure the ledger plate to the wall framing by driving heavy-duty three-inch steel lag screws directly through the pine board and deep into the center of each marked stud using a cordless drill. Fabricate the front rail and short perpendicular support ribs spaced at sixteen-inch intervals, joining the wooden frame sections together with two-inch pocket-hole screws driven firmly through the interior joints. Cover the top of the open box frame with a sheet of three-quarter-inch plywood cut to size, securing the panel with zinc-plated wood screws before applying a clean layer of protective wood sealer.

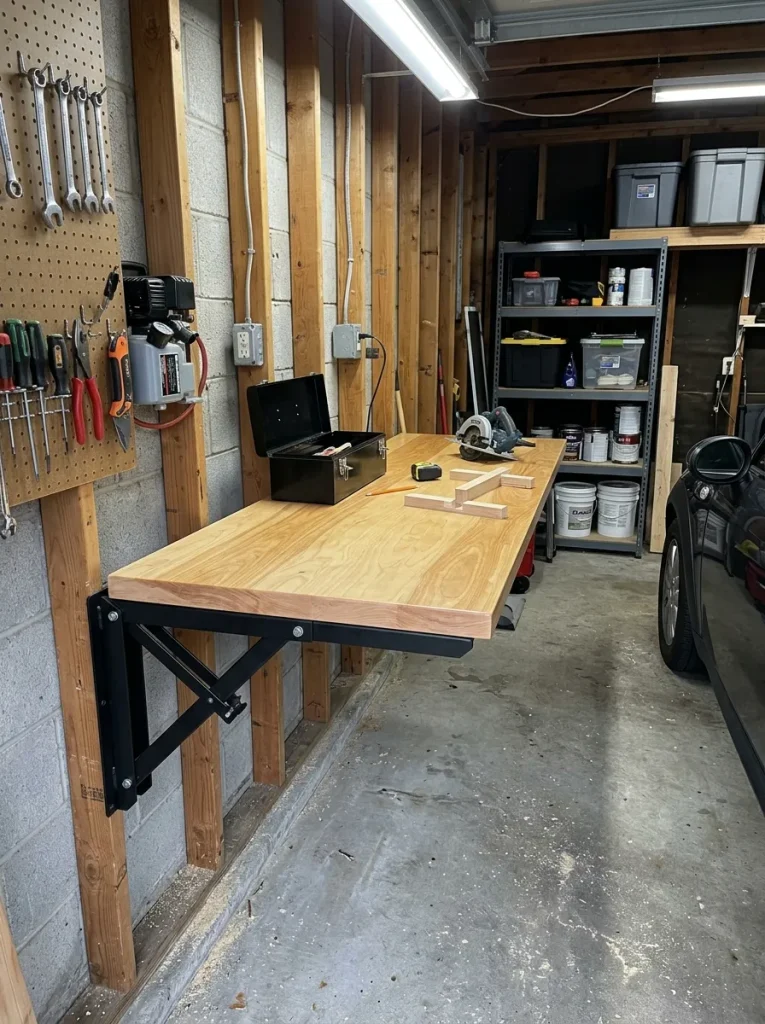

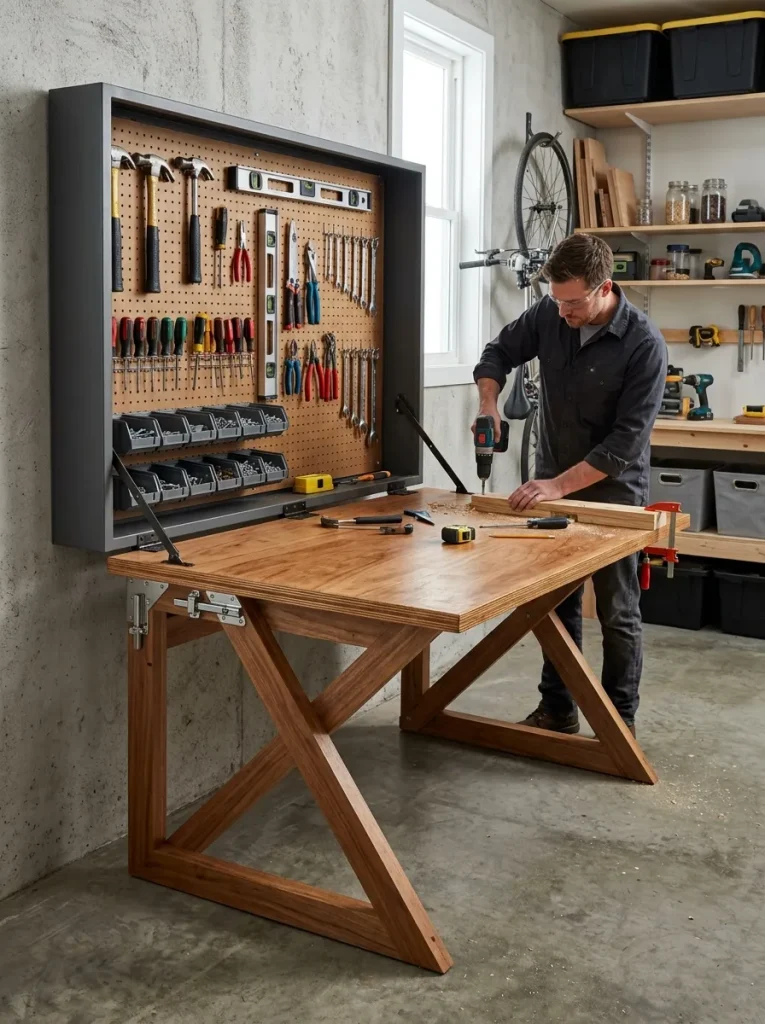

Idea 2: Vertical Stud Mounted Fold Down Workbench Shelves
Setup Method
Vertical stud mounted fold down workbench shelves offer a highly versatile, multi-purpose space-saving solution that transforms tight garage spaces from an open corridor into a fully functional carpentry workstation in seconds. This concept relies on attaching heavy-duty steel folding brackets or sturdy gate hinges directly to your wall framing, allowing a thick wood platform to sit flat during active assembly tasks and swing downward flush against the wall when finished. The visual layout is incredibly tidy, compressed, and organized, making it an excellent creative project for compact single-car garages, narrow utility hallways, or active mechanical workspaces where floor space is limited. The heavy wooden surface serves as a reliable station for mounting bench vices, operating portable power tools, or sorting small hardware components before cleanup.
The assembly workflow begins by cutting a solid piece of three-quarter-inch birch plywood or a laminated hardwood butcher block sheet to a dimension of twenty-four inches wide by forty-eight inches long to form the main work platform. Sand the outer perimeter edges and corners thoroughly with fine-grit sandpaper to eliminate sharp wood splinters and ensure a comfortable handling surface during daily folding operations. Mount two matching heavy-duty steel folding locking brackets directly into the center of adjacent wall studs using an electronic level to verify that both brackets sit at an identical vertical height. Position the prepared plywood platform centered on top of the extended locking brackets, securing the underlying metal frames to the wood using short, heavy-duty wood screws driven from the bottom. Test the mechanical operation by releasing the locking levers, ensuring the wooden platform swings smoothly downward without hitting nearby conduits, and check the structural locking mechanism under light physical pressure.

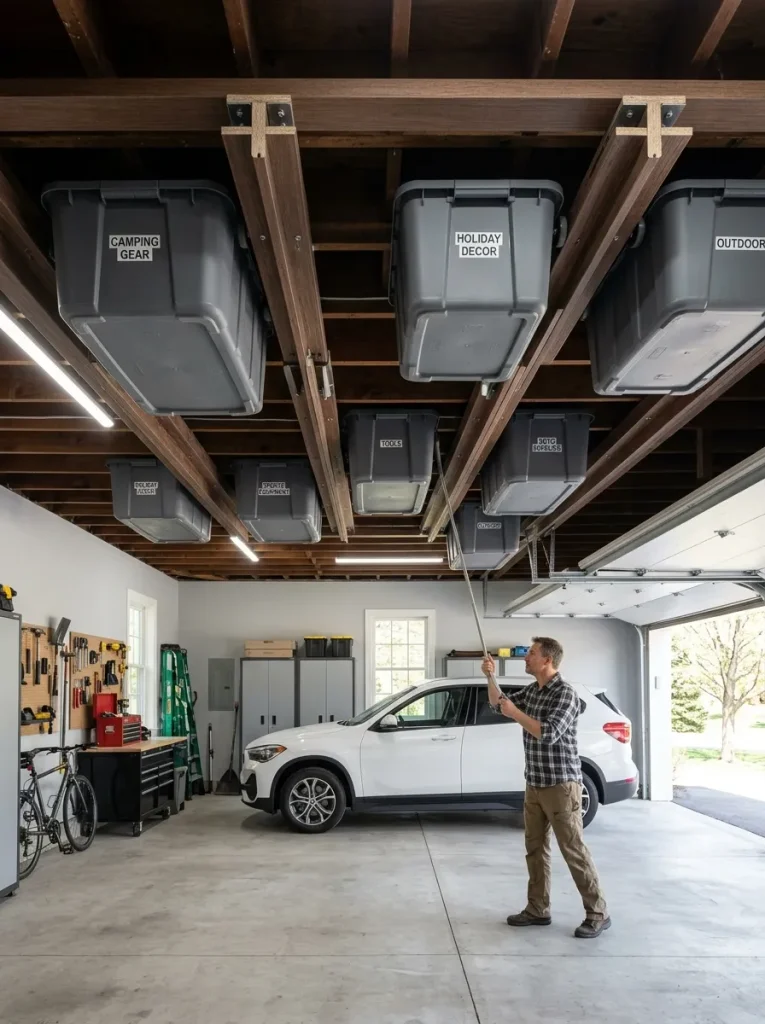

Idea 3: Deep Plywood Tote Box Overhead Storage Racks
How to Make
Deep plywood tote box overhead storage racks maximize underutilized vertical space along the highest borders of your garage ceiling, keeping bulky seasonal items completely out of your primary sightlines. This design concept involves constructing a series of horizontal wooden ceiling joist extensions that support sliding overhead tracks made from durable two-by-four-inch lumber rails. The visual presentation focuses on absolute storage efficiency, allowing standard plastic storage bins or handmade plywood tote boxes to slide smoothly into place along their upper outer plastic lips. This approach represents an exceptional way to practice creative organization planning, ensuring that holiday decorations, camping tents, and winter sports gear remain bone-dry and safely out of the way of daily workspace activities.
Clear your assembly workspace completely, and measure the top lip dimensions of your plastic storage bins accurately to determine the exact horizontal spacing required between your parallel ceiling tracking rails. Cut several vertical support drops from two-by-four-inch pine lumber, ensuring the length accommodates the total height of your storage boxes while maintaining a six-inch clearance gap from the ceiling skin. Anchor the vertical drops securely into your garage ceiling joists using three-inch structural lag screws, utilizing a heavy plumb bob to verify that all vertical supports hang straight down. Fasten horizontal tracking runners made from wide one-by-four-inch wood boards flat against the bottom ends of the vertical drops to form a sturdy ledger flange that cradles the plastic bin rims securely. Slide your filled storage containers sequentially into the completed overhead tracking network, checking that each bin glides freely without binding or catching along the wooden pathways.

Idea 4: Modular Slotted Wood Cleat Display Panels
Execution Process
Modular slotted wood cleat display panels, frequently referred to as French cleat systems, introduce an incredibly flexible, fully customizable organization matrix that allows you to rearrange tool hooks and shelves instantly without tools. This design concept relies on ripping long wooden boards lengthwise at a precise forty-five-degree angle, creating an interlocking wedge system where wall-mounted rails cradle matching wedges attached to individual tool holders. The visual presentation is highly industrial, clean, and professional, turning an entire open drywall expanse into a beautifully organized graphic display of your hand tools, clamps, and diagnostic gear. This structured layout style is highly practical for active makers because your storage needs can evolve dynamically as you acquire new machinery or supply boxes over time.
To build this modular system, adjust your table saw blade to a strict forty-five-degree angle, and rip several long eight-foot pieces of three-quarter-inch plywood lengthwise down the center to produce matching interlocking strips. Mount the bottom half of the ripped plywood strips horizontally along your garage wall studs, ensuring the wide face sits flat against the drywall while the angled wedge point faces upward and outward. Secure these wall cleats at equal eight-inch vertical intervals across the wall expanse, utilizing a spirit level and driving two lag screws into every structural framing stud to handle high loads. Fabricate individual storage accessories, such as custom drill holders, hammer racks, and small component shelves, by gluing a matching downward-facing forty-five-degree plywood wedge to the rear of each bracket. Simply hook the custom tool fixtures onto any of the horizontal wall cleats, adjusting the horizontal placement easily to maintain a perfectly sorted workspace.

Idea 5: Heavy Threaded Iron Pipe Utility Brackets
How to Make
Heavy threaded iron pipe utility brackets combine rugged industrial aesthetics with absolute physical strength, turning ordinary plumbing supplies into indestructible structural supports for holding long, heavy raw materials like timber or pipes. This concept involves securing industrial black iron floor flanges directly into wall studs and threading short lengths of iron pipe horizontally outward to act as high-capacity cantilever support arms. The visual appeal centers on the raw contrast between dark, textured metallic hardware and warm wood shelving planks, establishing a powerful look that elevates standard garage interiors. This upcycled hardware system is exceptionally beginner friendly, requiring no advanced woodworking joinery skills or specialized welding equipment to achieve a high-load storage platform that lasts a lifetime.
Purchase a collection of three-quarter-inch black iron floor flanges, matching ten-inch long threaded iron pipe nipples, and protective iron end caps from a local plumbing supplier. Clean the surface of the iron pipe components thoroughly using a cloth saturated in mineral spirits to remove grease and manufacturing oils, then apply a thin layer of matte black spray paint to prevent rust. Secure the iron floor flanges directly into the center of your vertical wall studs using three-inch structural lag screws, checking the alignment with a vertical plumb line to ensure proper vertical load tracking. Thread the ten-inch pipe nipples firmly into the mounted flanges using a heavy pipe wrench until the metallic joints are completely tight and unyielding. Twist the protective iron end caps onto the outer open threads of the pipes to act as safety stops, and lay a thick plank of rough-sawn wood across the pipe arms.

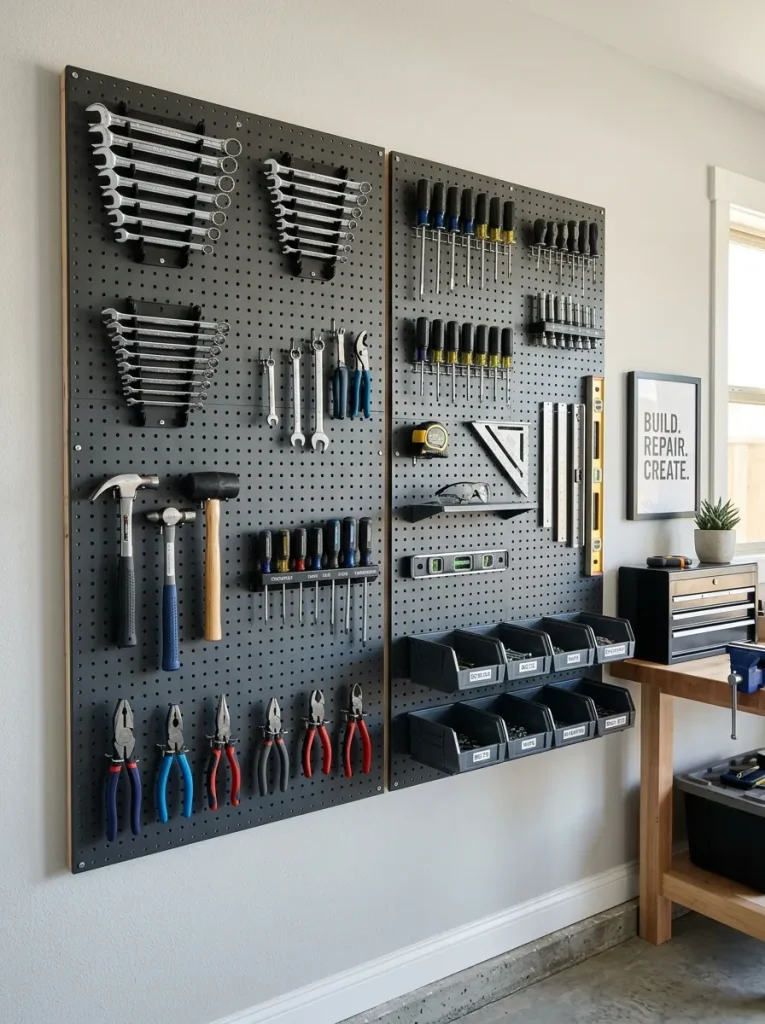

Idea 6: Integrated Pegboard Backing and Supply Ledges
Setup Method
Integrated pegboard backing and supply ledges offer a comprehensive, double-layered organizational framework that combines micro-tool hanging versatility with thick solid wooden shelving platforms over a single wall footprint. This configuration involves mounting a large sheet of perforated steel or tempered hardboard pegboard directly to a wooden frame spacer network, topped by a heavy two-by-six-inch pine crown platform. The visual presentation focuses on maximizing small-scale tool visibility, keeping small hand tools like wrenches, screwdrivers, and pliers sorted on hooks directly below your heavy bulk fluid containers and part organizer boxes. This approach represents an excellent way to consolidate multiple storage archetypes into a single, clean modern design highlight that cleans up messy workspaces immediately.
Select a flat section of your garage wall directly above your main workbench, and construct a rectangular perimeter spacer frame out of cheap one-by-two-inch furring strips to create a necessary one-inch rear clearance gap for pegboard hooks. Secure the spacer frame firmly to the underlying wall studs using standard wood screws, checking for squareness by measuring diagonally across the corners of the frame layout. Fasten a pre-cut sheet of perforated pegboard over the front of the spacer frame using wood screws equipped with wide washers to prevent the plastic or cardboard holes from tearing under stress. Mount a thick, heavy two-by-six-inch dimensional pine plank horizontally along the very top edge of the pegboard frame, securing the wood through the top rail and deep into the wall studs with long lag screws. Arrange your hand tools on the lower perforated field using zinc hooks, and store your large battery charging stations safely on the upper wooden ledge.

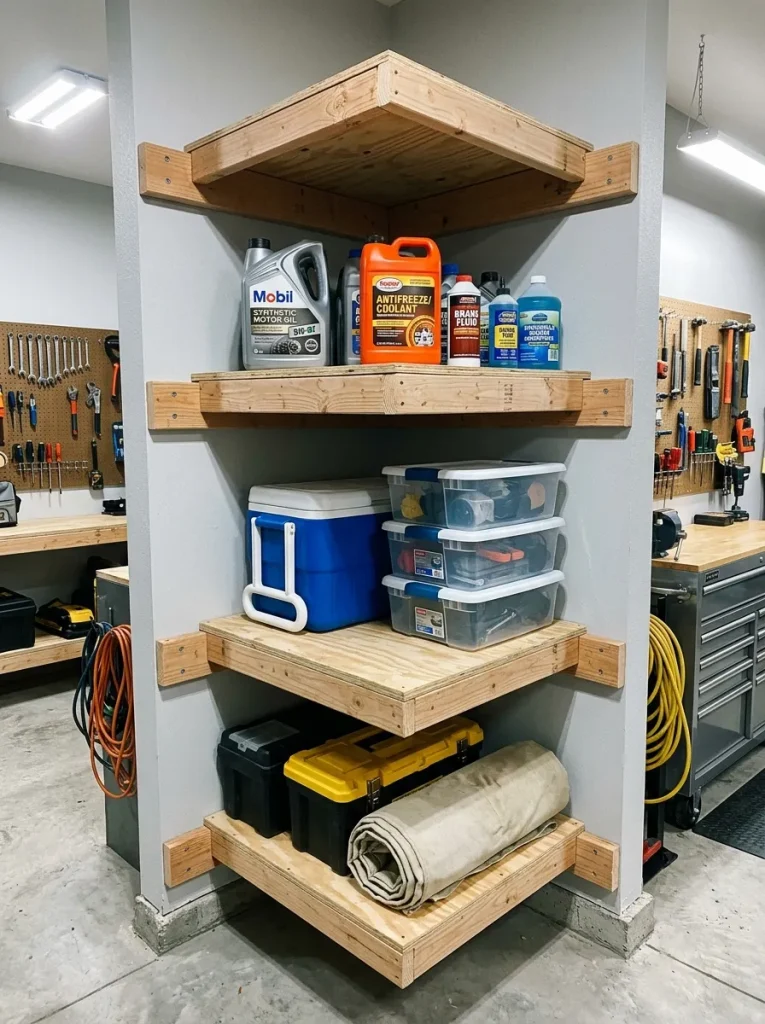

Idea 7: Reclaimed Wood Corner Floating Triangular Racks
Step-by-Step Guide
Reclaimed wood corner floating triangular racks introduce a highly clever, space-saving design modification that reclaims awkward, underutilized corner junctions inside your garage footprint, converting them into attractive storage points. This concept relies on cutting thick, three-sided triangular shelves from weathered barn wood, pallets, or structural plywood cutoffs, mounting them directly into the converging corner framing studs. The visual presentation is highly organic, rustic, and clean, filling empty corner voids with warm timber tones while providing an excellent platform for small items like aerosol spray cans, tape rolls, and safety gear. This specific geometric approach is highly stable because the shelf receives structural mechanical support from two independent intersecting walls simultaneously, preventing sagging naturally without requiring heavy lower diagonal metal braces.
To execute this efficient corner installation, measure out outward from the interior corner apex along both adjacent walls by twenty inches, marking these reference points clearly with a pencil to establish your shelf depth boundaries. Cut a square piece of three-quarter-inch thick reclaimed wood board measuring twenty inches on both sides, then slice the square diagonally from corner to corner to produce two identical triangular shelf blanks. Cut four short support ledger strips from one-by-two-inch furring lumber, chamfering the forward ends at a clean forty-five-degree angle to ensure a hidden, flush profile underneath the shelf blanks. Secure the support ledger strips horizontally along both intersecting walls using a drill and heavy wood screws, ensuring the metal anchors bite deep into the corner wall framing studs. Lay your triangular wood blank flat on top of the mounted ledger brackets, securing the panel from the top down using countersunk wood screws for a smooth surface presentation.

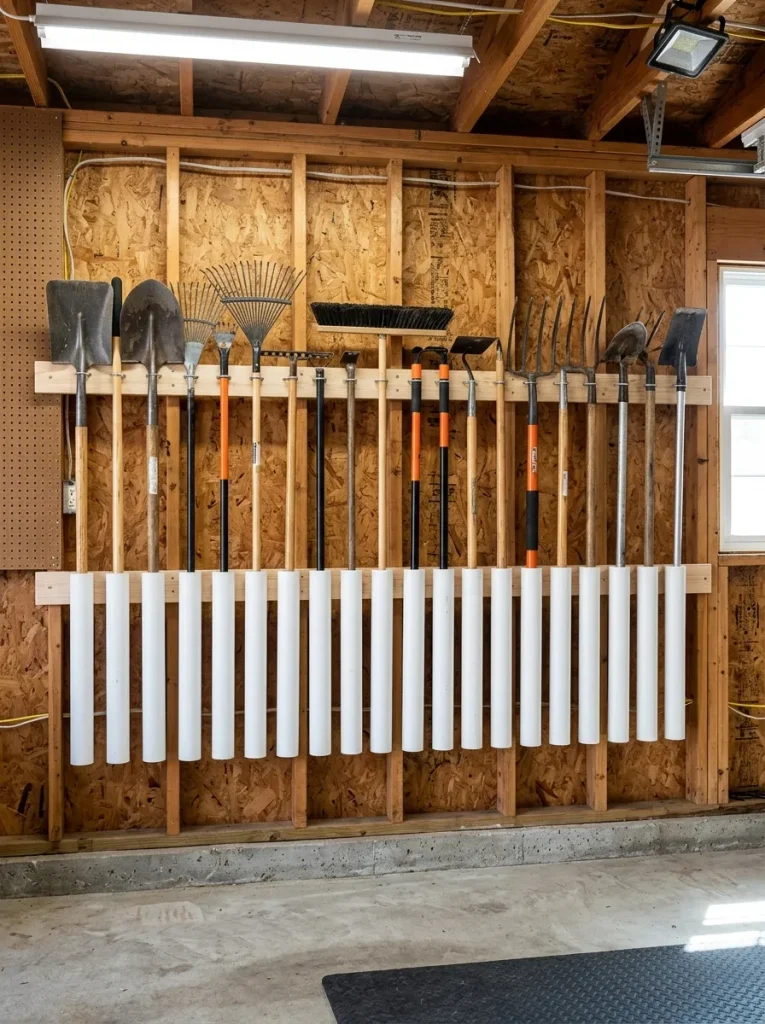

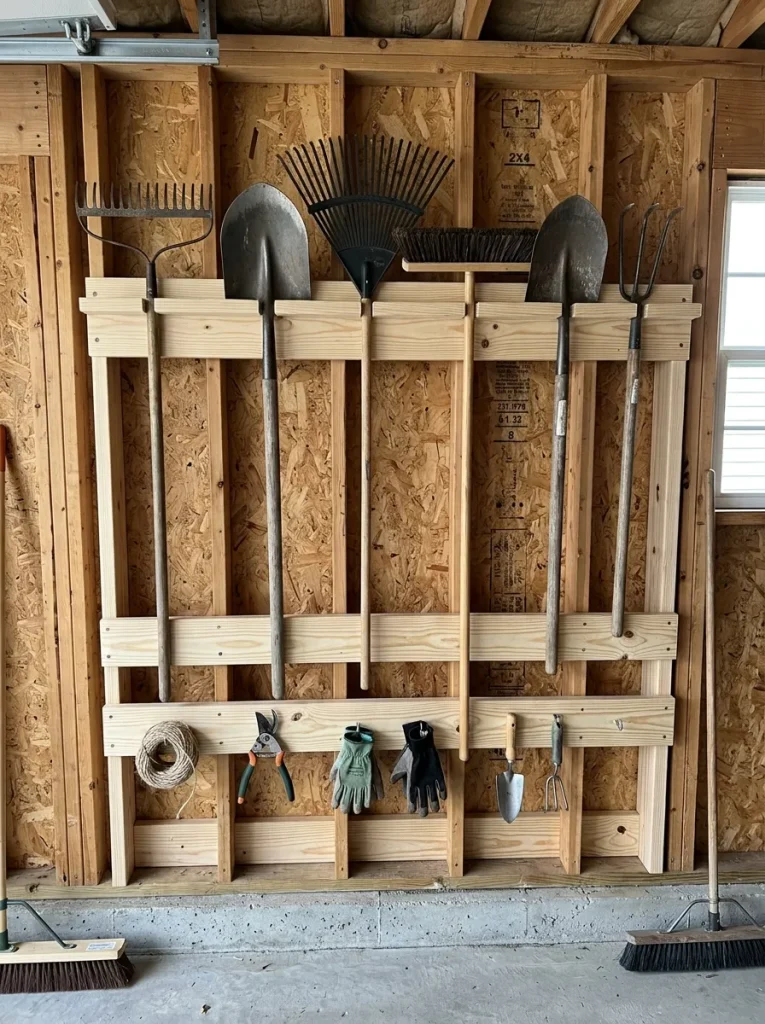

Idea 8: Double Tiered Slatted Garden Tool Organizers
Execution Process
Double tiered slatted garden tool organizers offer a highly durable, specialized vertical storage platform designed specifically to handle long-handled outdoor yard equipment like rakes, shovels, weed eaters, and brooms safely. This design layout utilizes a series of parallel wooden slats spaced apart to form open drop-in slots, allowing long tool handles to slide vertically through the frame while the heavy tool heads rest securely on the top rail. The visual layout is exceptionally clean, orderly, and open, preventing a pile of yard tools from cluttering corner walls or falling over unexpectedly during vehicle access movements. This technical setup is incredibly robust and highly practical for active households, keeping muddy landscaping tools organized and separated cleanly so they can dry properly after outdoor use.
The construction process begins by cutting two matching lengths of two-four structural pine lumber to a size of forty-eight inches long to serve as the upper and lower wall support rails. Use a portable cordless drill equipped with a two-inch spade bit or hole saw to drill a series of uniform holes spaced at four-inch intervals along the center axis of the upper pine board. Use a hand saw to cut out a straight half-inch wide slot extending from the outer forward edge of the board directly into each drilled circle to create an open drop-in gateway for tool handles. Mount the lower solid support rail horizontally along your garage wall studs at a height of twelve inches from the concrete floor using three-inch lag screws. Fasten the pre-drilled upper slotted rail perfectly parallel to the lower base at a height of forty-eight inches, then slide your long-handled garden tools vertically down into the matching open storage slots.

Idea 9: Angled Aerosol and Paint Can Dispenser Ledges
How to Make
Angled aerosol and paint can dispenser ledges bring a high degree of visual organization and tactical efficiency to your garage workshop, utilizing inclined gravity-fed wooden troughs to store and display standard chemical spray containers. This design concept involves mounting narrow wooden shelves at a strict fifteen-degree downward tilt, utilizing a raised front retaining lip to prevent the circular metal cans from slipping off the forward edge. The visual presentation focuses on clear label visibility, keeping spray paints, degreasers, lubricants, and cleaning solvents organized in neat rows where the product faces remain fully readable from across the room. This approach represents an exceptional way to practice chemical safety, ensuring that pressurized aerosol containers remain stored upright and separated from vibrating machinery benches.
Purchase several clean one-by-four-inch pine wood boards, cutting them into uniform three-foot lengths to serve as the main horizontal storage channels for your aerosol can collections. Cut a narrow half-inch square wooden dowel strip to match the length of each shelf board, gluing and nailing the strip flat along the top forward edge to form a reliable safety retaining barrier. Fabricate several triangular wooden support brackets using a miter saw cut at a fifteen-degree angle, ensuring the wide vertical base of the triangle faces the wall studs during mounting. Secure the triangular wooden supports to your garage wall framing using structural wood screws, checking the horizontal spacing with a tape measure to ensure stable shelf weight distribution. Fasten your prepared shelf boards flat onto the angled top edges of the mounted triangular brackets, and line up your paint canisters sequentially along the inclined wooden troughs.

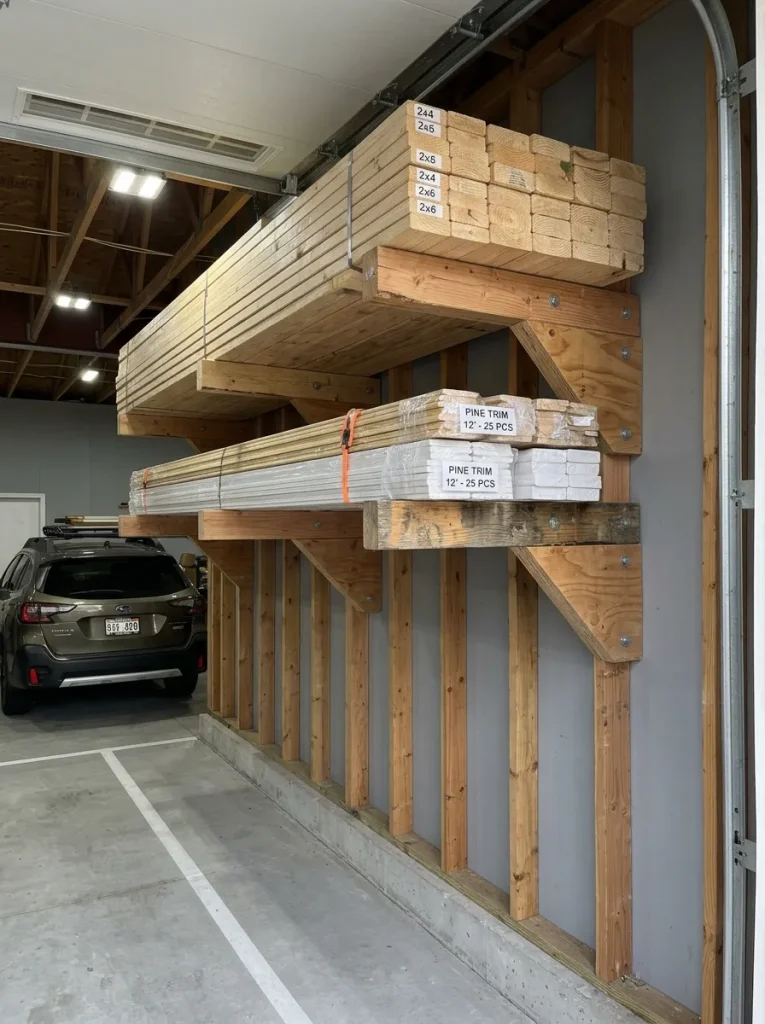

Idea 10: Overhead Lumber and Conduit Cantilever Racks
Setup Method
Overhead lumber and conduit cantilever racks utilize a heavy-duty, multi-layered vertical bracket network to store long, unwieldy raw materials like timber planks, PVC conduits, copper pipes, and metal mouldings safely against the highest sections of your garage walls. This configuration involves assembling a series of vertical backbone supports equipped with multiple horizontal arms that extend outward at varying heights to create a structured material sorting tree. The visual layout is highly efficient, industrial, and organized, lifting clumsy building materials completely out of your primary walkways and storage closets where they frequently create trip hazards. This structured layout style is highly practical for active home renovators, keeping raw wood stock flat, dry, and unbent over long storage durations.
Select three matching eight-foot long two-by-four structural pine boards to serve as the primary vertical backbone tracks, drilling a series of angled one-inch diameter dowel holes through the wide faces at twelve-inch vertical intervals. Mount these vertical backbone timbers flat against your garage wall framing studs using three-inch heavy lag screws, spacing the three vertical tracks exactly twenty-four inches apart horizontally to distribute weight evenly. Cut several twenty-inch lengths of one-inch diameter solid hardwood dowel rods or thick steel plumbing pipes to serve as your horizontal cantilever material support arms. Slide the solid dowel rods firmly into the pre-drilled angled holes of the vertical tracks, utilizing a heavy mallet to ensure the rods seat deep into the structural backing frame without play. Lay your heavy lumber planks and long electrical conduits across the extended cantilever arms, sorting the materials by size value or wood species to complete the layout.

Common Beginner Mistakes and How to Avoid Them
One of the most frequent and structurally dangerous errors made by beginners attempting to install DIY garage wall shelves is relying solely on plastic drywall anchors, toggle bolts, or expansion mollies driven directly into sheetrock skins. Drywall possesses an inherently weak, chalky gypsum core encased in thin layers of paper, which lacks the tensile strength required to handle the severe downward mechanical forces exerted by heavy automotive tools, steel hardware bins, and stacked building materials. Under heavy seasonal loads, a drywall-anchored shelf will inevitably tear loose from the wall, causing severe structural damage to the room and risking physical injury to anyone working underneath the platform. To prevent this catastrophic structural failure completely, always locate the center of your internal vertical framing studs using a high-quality electronic stud finder, and drive heavy-duty three-inch steel lag screws directly into the solid wood framing. Another prevalent mistake is neglecting to check for horizontal levelness across multiple intersecting support brackets during the initial fastening phases. Home garage floors and concrete foundations are intentionally sloped outward toward the main door to facilitate water drainage, meaning you cannot use your floor line as a reference point for straightness. Always utilize a long, professional forty-eight-inch aluminum spirit level or a self-leveling cross-line laser level to project a perfectly straight reference line across your wall studs before tightening any structural fasteners.
Practical Tips for Better Results
Achieving professional, boutique-grade results with handmade garage organization fixtures requires absolute precision during lumber curation, pilot hole drilling, and protective coating workflows. When purchasing your structural pine boards and plywood sheets from a local lumber yard, always sight down the length of every timber block to select pieces that are completely straight and free of twists, bows, cupping, or large loose knots that weaken wood integrity. Before driving heavy steel lag screws or structural wood fasteners into your vertical wall studs, always drill a precise pilot hole using a drill bit that matches the inner core diameter of the screw shank. Failing to drill proper pilot holes when working with dense two-by-four structural timbers can cause the dry wood fibers to split apart violently along the grain lines, which dramatically reduces the holding capacity of the metal threads and weakens your wall framework. To maintain a clean, organized, and highly professional layout that resists the harsh environmental conditions of an uninsulated residential garage, always seal your completed wooden shelves with two coats of a high-quality, water-resistant polyurethane sealer or an oil-based exterior porch paint. This protective layer seals the porous wood pores completely, preventing the absorption of ambient humidity, automotive oil splashes, and chemical solvents, ensuring your shelving remains warp-free and easy to clean.
Styling, Presentation, or Organization Ideas
Thoughtful presentation, uniform color coding, and smart spatial arrangement transform simple handmade wooden shelves into a beautifully curated home decor highlight that maximizes workspace workflow. Group your frequently used tools and supplies together inside matching industrial plastic storage bins or uniform heavy-duty storage boxes, utilizing bold, minimalist style printed labels on the front faces to keep your inventory identifiable from across the workshop floor. Arrange your completed shelving structures using odd-number design rulesโsuch as grouping three short modular cleat panels or a trio of corner triangular racks together along a single wall segmentโto create a balanced, visually engaging appearance that cuts down on visual clutter. Introduce a striking color contrast by painting your raw wooden support brackets in a deep charcoal grey or a matte black finish while leaving the main horizontal shelf planks a natural, clear-coated pine tone, establishing a modern design look that pairs beautifully with metallic hand tools. Keep your chemical spray cans, lubricants, and detailing solvents sorted systematically by height or function along your angled dispenser ledges, ensuring the brand labels face forward clearly to streamline cleanup tasks after major mechanical projects. For large, bulky equipment like rolling lawn mowers and air compressors, design your lower floating shelf clearances precisely to allow these machines to roll directly underneath the platforms, keeping your open floor corridors clear for vehicle access.
Budget or Time Planning
Planning your financial resources and physical assembly timeline effectively guarantees that your garage home improvement project remains a relaxing, highly rewarding creative project rather than a stressful, disorganized chore. A basic dimensional pine floating shelf installation or a simple vertical stud-mounted fold-down workbench is an easy project that can be completed over a single weekend afternoon, requiring roughly three to four hours of active fabrication labor per wall segment. Allocate a specific block of time on Saturday morning to execute your wall stud mapping, lumber measuring, and board cutting steps simultaneously, leaving the afternoon free for the vital bracket mounting and structural ledger anchoring phases. Use Sunday morning for applying the protective water-resistant wood sealers or exterior paint coatings, allowing the warm afternoon air to cure the surfaces completely before loading your heavy supply boxes onto the platforms on Monday morning. If you are operating on a modest budget, maximize your financial savings by purchasing standard four-by-eight-foot sheets of three-quarter-inch utility plywood and asking your supplier to rip the sheet into narrow twelve-inch planks, which cuts material costs down significantly compared to buying pre-cut retail shelving boards. Focus your initial budget ideas funds primarily on securing high-strength steel lag screws and heavy-duty structural ties, as hardware durability dictates the ultimate safety and lifespan of your vertical storage networks.
Creative Expansion and Advanced Inspiration
Once you have successfully mastered the fundamental carpentry, level alignment, and structural wall anchoring methods outlined in this organization guide, you can confidently explore advanced design variations to expand your crafting skills into more complex residential projects. Consider scaling up your modular French cleat layouts by embedding low-voltage copper LED strip lights directly inside a hidden routed groove along the underside of every tool rail, constructing a stunning, illuminated display workspace that projects soft, shadow-free task lighting down onto your active assembly areas. Advanced creators can transition from simple static shelving units to building an integrated, automated overhead lift system, incorporating a small electric winch motor and steel cable pulleys to raise and lower massive four-by-eight-foot heavy storage platforms automatically with the press of a remote control button. If you enjoy working with mixed-media art pieces, combine your cured wooden structures with custom metal fabrication techniques, utilizing thick industrial steel channel bars, expanded metal mesh grates, or custom-bent aluminum angle brackets to construct lightweight outdoor garden tool holders and ultra-heavy-duty tire racks for your vehicle workshop. Exploring these advanced modifications allows your creative projects to continuously evolve alongside modern industrial design innovations, ensuring your custom handmade home fixtures remain highly functional, deeply engaging, and visually stunning for years to come.
